Description
Product Features
- Countertop ice-and-water dispenser for compact self-serve stations.
- Produces up to 366 lb / 24 hr (166 kg) for higher-volume drink and prep demand.
- Integrated storage holds 16.5 lb (7.5 kg) of ready-to-dispense ice.
- Makes nugget/mineral ice pieces in the 6.4-17 mm range.
- 4.1-inch touchscreen, push-button use and optional infrared dispensing simplify service.
- Sealed air-cooled R290 refrigeration helps shield the ice path from outside contamination.
- Runs on 110 V / 60 Hz / 1 Ph with 6.3 A draw and 640 W rated power.
- 304 stainless steel body and resin front create a clean service-counter appearance.
- Automatic cleaning, UV LED support and removable contact parts simplify sanitation.
- DOE, ETL and NSF certifications support commercial specifications.
Technical Specifications
| Dimensions | 18.2 in W x 23.62 in D x 37.95 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (115 g) |
| Rated Amp, Voltage, Power | 6.3 A, 110 V / 60 Hz / 1 Ph, 640 W |
| Certification | DOE, ETL, NSF |
| Ice Production | 366 lb / 24 hr (166 kg) |
| Maximum Storage Bin Capacity | 16.5 lb (7.5 kg) |
| Ice Shape & Size | Nugget/mineral (6.4-17 mm) |
| Ice Making Time / Cycle | Approx. 15 min startup |
| Ice Release Method | Touch / button / IR option |
| Materials | 304 SS body + resin front |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 151 lb (68.5 kg) |
| Warranty | 3 Year Parts & Labour |

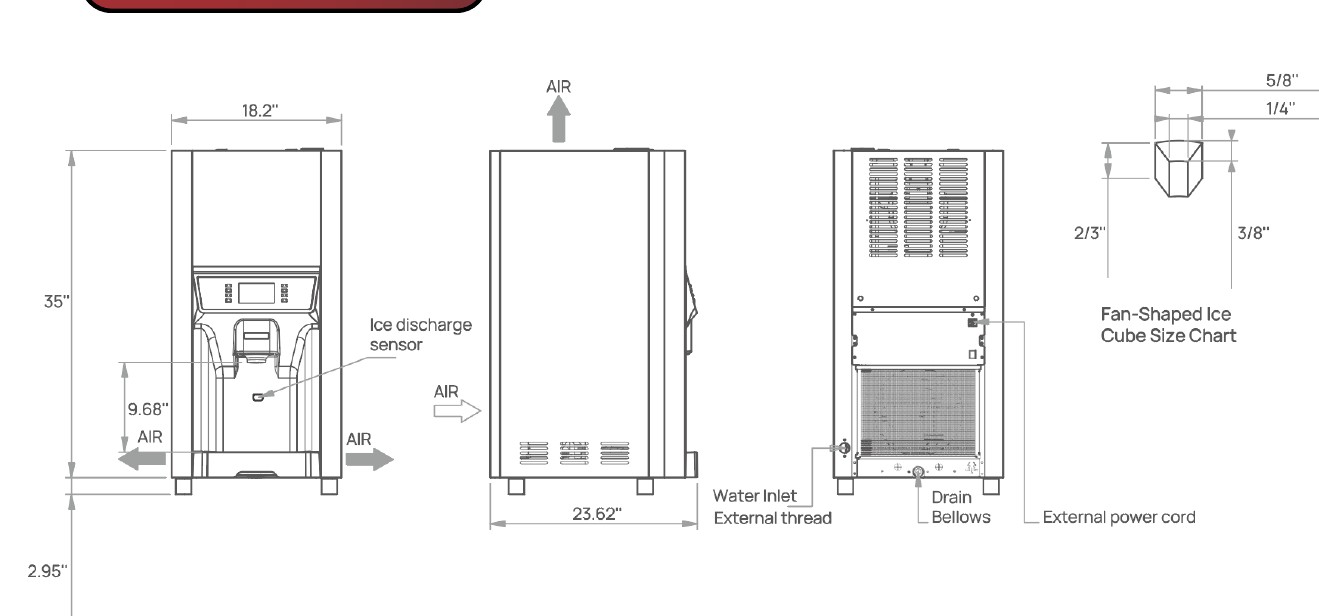

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
