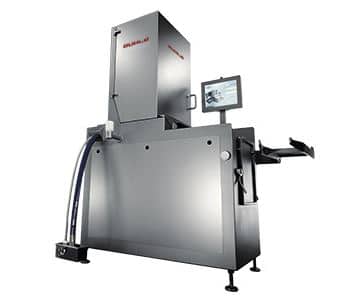

Ruhle IR 56 Injector
56 needles achieve up to 5.000 kg of curing per hour. The 350 mm-wide support surface ensures an ergonomic operation.
Description
56 needles achieve up to 5.000 kg of curing per hour. The 350 mm-wide support surface ensures an ergonomic operation. An innovative machine concept that delivers not only substantial time savings but also overall better quality.
at one glance
- Touch – PC control
- Process diagnostics system
- Variable operating speeds
- Single – needle control
- Rotary pump
- Softer
- Welded machine construction
- Cleaning assistant
- Feed system
- certificate of inspection
SPECIFICATIONS
Technical specifications
| Machine height | 2.022 mm |
| Machine length | 1.600 mm |
| Machine width | 750 mm |
| Machine weight | 750 kg |
| Connected load | 400 V, 8.7 kW, 16 A |
| Performance | 5.000 kg/h |
| Injections | 60 mm |
| Belt width | 350 mm |
| Rows of needles | 4 |
| Feed inlet height | 200 mm |
| Injection volume | 5 – 80 % |
| Pressure | 1 – 5 bar |
