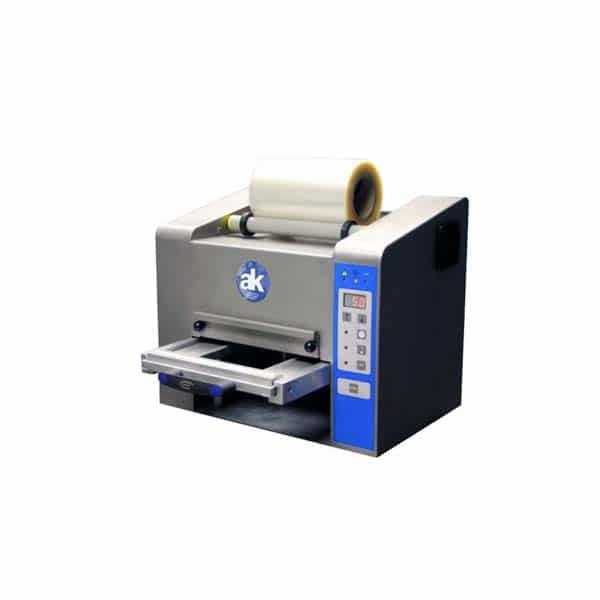

Ramon TS-200

Technical information

• Stainless steel construction.
• Die set in anodised aluminium.
• Semi-automatic tray sealer.
• Automatic sealing system.
• Automatic film feed.
• Acoustic and visual device end of cycle.
• Cutting the film at the backside of the plate.
• Digital panel with temperature control (0º-230ºC).
• Compact and robust model.
• Easy change of mold, molds are interchangeable in few seconds.
• Fast heating of the selected temperature.
• Simple use machine.
• Allows working with different trays materials types, PP, PET, ALUMINUM…
• Machine works in single phase.
• Maximum sealing surface: 250x237mm.
• Film roll width: 200/220mm.
• Power: 900W.

Standard die set

• Multi-mould for 3 diffent sizes: 260x192mm; 224×192; 137x192mm
• 1/8 GN (168x130mm)
• 1/4 GN (160x260mm)
• We can manufacture any type of special die set according to the customer trays.
